자바 리듬게임 만들기 ( 7강 )



https://youtu.be/xs92kqU2YWg





이번 자바 스터디는 동빈나님의 자바 리듬게임 만들기 영상을 기반으로 진행하게 되었습니다







---



7강 ( 곡 기능 선택 구현 )







시작 버튼을 눌렀을 때 첫 번째 곡의 하이라이트 부분이 나오도록 편집

좌우 버튼을 클릭했을 때 곡이 바뀌도록 코드 추가 (Track 클래스 생성) / 해당 클래스는 하나의 곡의 정보를 담는 클래스

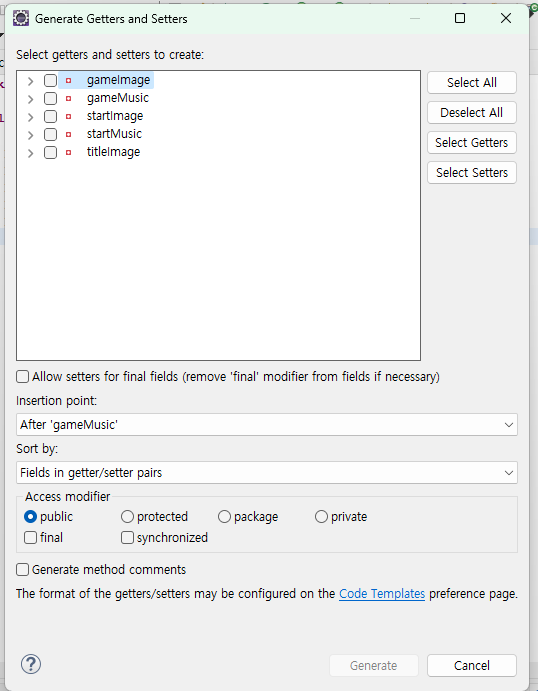

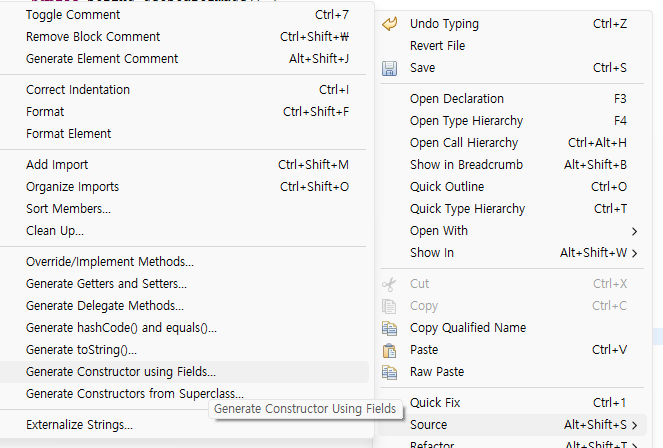

우클릭 - Source - Generate getter and setter ⇒ select all 클릭







생성자 생성 ⇒

Track이라는 클래스를 이용하여 새로운 변수를 만들어 줄때 참고한 값들을 그대로 초기화 해주는 기능을 수행하는 메서드



왼쪽 오른쪽 버튼을 눌렀을 때 버튼을 누른 trackList의 index 순서에 맞게

title Image, StartImage, Music 등을 출력하게 된다











DynamicBeat.java

package dynamic_beat_7_2;

import java.awt.Color;
import java.awt.Cursor;
import java.awt.Graphics;
import java.awt.Image;
import java.awt.event.MouseAdapter;
import java.awt.event.MouseEvent;
import java.awt.event.MouseMotionAdapter;
import java.util.ArrayList;

import javax.swing.ImageIcon;
import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JLabel;

import dynamic_beat_7.Main;
import dynamic_beat_7.Track;

public class DynamicBeat extends JFrame {

	private Image screenImage;
	private Graphics screenGraphic;

	private ImageIcon exitButtonBasicImage = new ImageIcon(Main.class.getResource("../images/exitButtonBasic.jpg"));
	private ImageIcon exitButtonEnteredImage = new ImageIcon(Main.class.getResource("../images/exitButtonEnter.jpg"));
	private ImageIcon startButtonBasicImage = new ImageIcon(Main.class.getResource("../images/startButtonBasic.png"));
	private ImageIcon  startButtonEnteredImage = new ImageIcon(Main.class.getResource("../images/startButtonEntered.png"));
	private ImageIcon quitButtonBasicImage = new ImageIcon(Main.class.getResource("../images/quitButtonBasic.png"));
	private ImageIcon quitButtonEnteredImage = new ImageIcon(Main.class.getResource("../images/quitButtonEntered.png"));
	private ImageIcon leftButtonBasicImage = new ImageIcon(Main.class.getResource("../images/leftButtonBasic.png"));
	private ImageIcon leftButtonEnteredImage = new ImageIcon(Main.class.getResource("../images/leftButtonEntered.png"));
	private ImageIcon rightButtonBasicImage = new ImageIcon(Main.class.getResource("../images/rightButtonBasic.png"));
	private ImageIcon rightButtonEnteredImage = new ImageIcon(Main.class.getResource("../images/rightButtonEntered.png"));

	private Image background = new ImageIcon(Main.class.getResource("../images/IntroBackground.jpg"))
			.getImage();
	private JLabel menuBar = new JLabel(new ImageIcon(Main.class.getResource("../images/menuBar.png")));

	private JButton exitButton = new JButton(exitButtonBasicImage);
	private JButton startButton = new JButton(startButtonBasicImage);
	private JButton quitButton = new JButton(quitButtonBasicImage);
	private JButton leftButton = new JButton(leftButtonBasicImage);
	private JButton rightButton = new JButton(rightButtonBasicImage);

	private int mouseX, mouseY;

	private boolean isMainScreen = false;

	ArrayList<Track> trackList = new ArrayList<Track>();

	private Image titleImage;
	private Image selectedImage;
	private Music selectedMusic;
	private int nowSelected = 0;

	public DynamicBeat() {
		setUndecorated(true);
		setTitle("Dynamic Beat");
		setSize(Main.SCREEN_WIDTH, Main.SCREEN_HEIGHT);
		setResizable(false);
		setLocationRelativeTo(null);
		setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
		setVisible(true);
		setBackground(new Color(0, 0, 0, 0));
		setLayout(null);

		trackList.add(new Track("funday Title Image.png", "funday Start Image.png", "funday Game Image.png", "funday.mp3"));
		trackList.add(new Track("happpyrock Title Image.png", "happyrock Start Image.png", "happyrock Game Image.png", "happyrock.mp3"));
		trackList.add(new Track("jazzyfrenchy Title Image.png", "jazzyfrenchy Start Image.png", "jazzyfrenchy Game Image.png", "jazzyfrenchy.mp3"));
		//실제 파일들을 Track 클래스의 생성자에 있는 위치대로 설정 /해당 list를 관리할 수 있게 된다

		exitButton.setBounds(1240, 0, 30, 30);
		exitButton.setBorderPainted(false);
		exitButton.setContentAreaFilled(false);
		exitButton.setFocusPainted(false);
		exitButton.addMouseListener(new MouseAdapter() {
			@Override
			public void mouseEntered(MouseEvent e) {
				exitButton.setIcon(exitButtonEnteredImage);
				exitButton.setCursor(new Cursor(Cursor.HAND_CURSOR));
//				Music buttonEnteredMusic = new Music("buttonEnteredMusic.mp3", false);
//				buttonEnteredMusic.start();
			}
			@Override
			public void mouseExited(MouseEvent e) {
				exitButton.setIcon(exitButtonBasicImage);
				exitButton.setCursor(new Cursor(Cursor.DEFAULT_CURSOR));
			}
			@Override
			public void mousePressed(MouseEvent e) {
				Music buttonEnteredMusic = new Music("buttonPressedMusic.mp3", false);
				buttonEnteredMusic.start();
				try {
					Thread.sleep(1000);
				} catch (InterruptedException ex) {
					ex.printStackTrace();
				}
				System.exit(0);
			}
		});
		add(exitButton);

		startButton.setBounds(60, 430, 400, 100);
		startButton.setBorderPainted(false);
		startButton.setContentAreaFilled(false);
		startButton.setFocusPainted(false);
		startButton.addMouseListener(new MouseAdapter() {
			@Override
			public void mouseEntered(MouseEvent e) {
				startButton.setIcon(startButtonEnteredImage);
				startButton.setCursor(new Cursor(Cursor.HAND_CURSOR));
//				Music buttonEnteredMusic = new Music("buttonEnteredMusic.mp3", false);
//				buttonEnteredMusic.start();
			}
			@Override
			public void mouseExited(MouseEvent e) {
				startButton.setIcon(startButtonBasicImage);
				startButton.setCursor(new Cursor(Cursor.DEFAULT_CURSOR));
			}
			@Override
			public void mousePressed(MouseEvent e) {
				selectTrack(0);
				startButton.setVisible(false);
				quitButton.setVisible(false);
				leftButton.setVisible(true);
				rightButton.setVisible(true);
				background = new ImageIcon(Main.class.getResource("../images/mainBackground.jpg"))
						.getImage();
				isMainScreen = true;
			}
		});
		add(startButton);

		quitButton.setBounds(60, 560, 400, 100);
		quitButton.setBorderPainted(false);
		quitButton.setContentAreaFilled(false);
		quitButton.setFocusPainted(false);
		quitButton.addMouseListener(new MouseAdapter() {
			@Override
			public void mouseEntered(MouseEvent e) {
				quitButton.setIcon(quitButtonEnteredImage);
				quitButton.setCursor(new Cursor(Cursor.HAND_CURSOR));
			}
			@Override
			public void mouseExited(MouseEvent e) {
				quitButton.setIcon(quitButtonBasicImage);
				quitButton.setCursor(new Cursor(Cursor.DEFAULT_CURSOR));
			}
			@Override
			public void mousePressed(MouseEvent e) {
				try {
					Thread.sleep(1000);
				} catch (InterruptedException ex) {
					ex.printStackTrace();
				}
				System.exit(0);
			}
		});
		add(quitButton);

		leftButton.setVisible(false);
		leftButton.setBounds(140, 310, 60, 60);
		leftButton.setBorderPainted(false);
		leftButton.setContentAreaFilled(false);
		leftButton.setFocusPainted(false);
		leftButton.addMouseListener(new MouseAdapter() {
			@Override
			public void mouseEntered(MouseEvent e) {
				leftButton.setIcon(leftButtonEnteredImage);
				leftButton.setCursor(new Cursor(Cursor.HAND_CURSOR));
			}
			@Override
			public void mouseExited(MouseEvent e) {
				leftButton.setIcon(leftButtonBasicImage);
				leftButton.setCursor(new Cursor(Cursor.DEFAULT_CURSOR));
			}
			@Override
			public void mousePressed(MouseEvent e) {
				selectLeft();
			}
		});
		add(leftButton);

		rightButton.setVisible(false);
		rightButton.setBounds(1080, 310, 60, 60);
		rightButton.setBorderPainted(false);
		rightButton.setContentAreaFilled(false);
		rightButton.setFocusPainted(false);
		rightButton.addMouseListener(new MouseAdapter() {
			@Override
			public void mouseEntered(MouseEvent e) {
				rightButton.setIcon(rightButtonEnteredImage);
				rightButton.setCursor(new Cursor(Cursor.HAND_CURSOR));
			}
			@Override
			public void mouseExited(MouseEvent e) {
				rightButton.setIcon(rightButtonBasicImage);
				rightButton.setCursor(new Cursor(Cursor.DEFAULT_CURSOR));
			}
			@Override
			public void mousePressed(MouseEvent e) {

				selectRight();
			}
		});
		add(rightButton);


		menuBar.setBounds(0, 0, 1280, 30);
		menuBar.addMouseListener(new MouseAdapter() {
			@Override
			public void mousePressed(MouseEvent e) {
				mouseX = e.getX();
				mouseY = e.getY();
			}
		});
		menuBar.addMouseMotionListener(new MouseMotionAdapter() {
			@Override
			public void mouseDragged(MouseEvent e) {
				int x = e.getXOnScreen();
				int y = e.getYOnScreen();
				setLocation(x - mouseX, y - mouseY);
			}
		});
		add(menuBar);
	}

	public void paint(Graphics g) {
		screenImage = createImage(Main.SCREEN_WIDTH, Main.SCREEN_HEIGHT);
		screenGraphic = screenImage.getGraphics();
		screenDraw(screenGraphic);
		g.drawImage(screenImage, 0, 0, null);
	}

	public void screenDraw(Graphics g) {
		g.drawImage(background, 0, 0, null);
		if(isMainScreen)
		{
			g.drawImage(selectedImage, 340, 100, null);
			g.drawImage(titleImage, 340, 70, null);
		}
		paintComponents(g);
		this.repaint();
	}

	public void selectTrack(int nowSelected) {
		if(selectedMusic != null)
			selectedMusic.close();
		titleImage = new ImageIcon(Main.class.getResource("../images/" + trackList.get(nowSelected).getTitleImage())).getImage();
		selectedImage = new ImageIcon(Main.class.getResource("../images/" + trackList.get(nowSelected).getStartImage())).getImage();
		selectedMusic = new Music(trackList.get(nowSelected).getStartMusic(), true);
		selectedMusic.start();
	}

	public void selectLeft() {
		if(nowSelected == 0)
			nowSelected = trackList.size() - 1;
		else
			nowSelected--;
		selectTrack(nowSelected);
	}

	public void selectRight() {
		if(nowSelected == trackList.size() - 1)
			nowSelected = 0;
		else
			nowSelected++;
		selectTrack(nowSelected);
	}

}







Track.java

package dynamic_beat_7_2;

public class Track { //해당 곡의 이미지, 제목, 음원파일의 정보가 들어감

	private String titleImage; //제목 부분 이미지
	private String startImage; //게임 선택 창 표지 이미지
	private String gameImage; //해당 곡을 실행했을 때 표지 이미지
	private String startMusic; //게임 선택 창 출력
	private String gameMusic; //해당 곡을 실행했을 때 출력
	public String getTitleImage() {
		return titleImage;
	}
	public void setTitleImage(String titleImage) {
		this.titleImage = titleImage;
	}
	public String getStartImage() {
		return startImage;
	}
	public void setStartImage(String startImage) {
		this.startImage = startImage;
	}
	public String getGameImage() {
		return gameImage;
	}
	public void setGameImage(String gameImage) {
		this.gameImage = gameImage;
	}
	public String getStartMusic() {
		return startMusic;
	}
	public void setStartMusic(String startMusic) {
		this.startMusic = startMusic;
	}
	public String getGameMusic() {
		return gameMusic;
	}
	public void setGameMusic(String gameMusic) {
		this.gameMusic = gameMusic;
	}
	public Track(String titleImage, String startImage, String gameImage, String startMusic) { //생성자 생성
		super();
		this.titleImage = titleImage;
		this.startImage = startImage;
		this.gameImage = gameImage;
		this.startMusic = startMusic;
		this.gameMusic = gameMusic;
	}



}













---

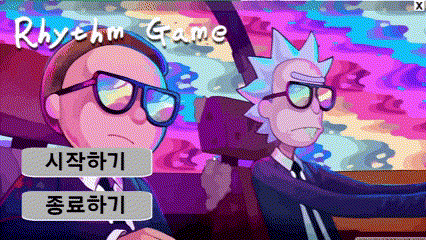

실행 화면 💻
